If your classic GM truck slips between second and third, or the fluid comes out smelling burnt, a worn clutch pack is usually the first place to look. The good news: you do not have to guess whether an automatic transmission clutch pack is done. Measuring clutch wear comes down to one number — clutch pack clearance. Measure it correctly and you know whether the pack can be reused or needs to go in the parts pile. Guess at it, and you are buying yourself a comeback.

Measuring 4L60E clutch wear is the single most reliable way to prevent a repeat failure after a rebuild. Visual inspection alone is where a lot of rebuilds go wrong — a plate that looks fine can still put the stack out of spec, and you find out a few thousand miles later when the frictions burn. Measure the gap, and you know the hydraulic apply pressure will land where GM engineered it.

What Clutch Pack Clearance Tells You About Wear

Every classic GM automatic relies on a specific stack-up — friction plates, steel plates, and a backing plate — to transfer engine power. As the friction material wears, the stack gets thinner and the clearance inside the drum opens up. That extra gap makes the piston travel farther to apply the pack. Apply pressure drops, and engagement softens. That is apply loss, and it is what turns a tired pack into a slipping, then burned, pack.

Measuring the gap with a feeler gauge or a dial indicator tells you how much life is left — information no visual check can give you. The factory windows are narrow on purpose. Too tight and the pack drags and overheats. Too loose and you get flare shifts, delayed engagement, and slippage under load. Keep the clearance in spec and the fluid volume needed to apply the clutch stays stable shift after shift.

The 3-4 clutch pack is historically the weak link in these units, and its target clearance changes with the year of production. Measure against the spec for the unit in front of you — not a number from memory.

Step-by-Step: Measuring 4L60E Clutch Pack Wear

Run these in order. Skipping the prep steps is how you get a measurement you cannot trust.

1. Clean and dry every component. Wash the friction plates, drum, and pistons in solvent, then blow them dry with compressed air to clear all the old fluid. Residual fluid throws off both the feel and the reading.
2. Inspect the steel plates. Look for heat spots, heavy discoloration, warping, or a dark blue hue. Blue means the plate has seen extreme heat — replace it, do not measure around it.
3. Check the drum and snap-ring groove. Confirm the inner drum splines are free of ridges and the snap-ring groove is clean and square. A worn groove changes where the pack sits and corrupts the clearance.
4. Load the clutch pack. Install the complete baseline stack into the input drum and seat the snap ring fully and correctly in its groove.

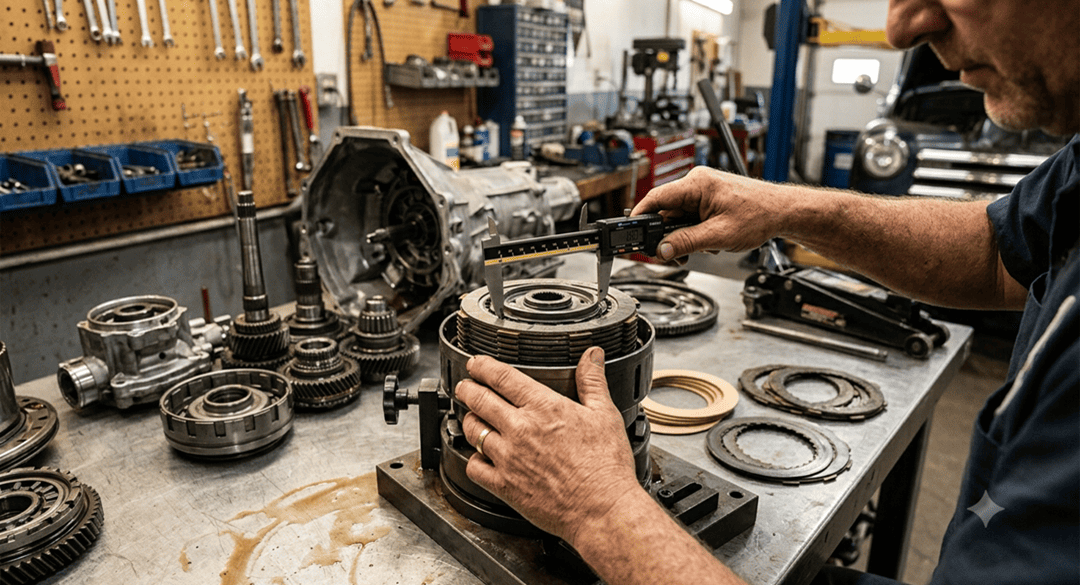

5. Measure the gap. Apply light, even downward pressure on the backing plate to simulate hydraulic apply, then slide a feeler gauge between the snap ring and the top plate.
6. Average three points. Take the measurement at three points around the drum and average them. One reading can hide localized distortion; three catches it.

When the Pack Has to Be Replaced

If the clearance is past the service limit in the table, inspect the individual friction-plate thickness before you decide anything. A new 4L60E 3-4 friction measures around 0.080", and losing as little as 0.005" per plate can push the whole stack out of spec. Across a five-plate pack, small per-plate wear adds up fast.

Here is the trap to avoid: do not add an extra steel plate to take up excessive clearance. It changes the apply geometry and piston travel, masks worn frictions, and sets up the next failure. If the stack is out of spec, replace the pack with the correct frictions and calibrated steels. Set the final clearance with a selectable backing plate or snap ring.

Remember which way each failure points. Clearance that is too tight causes dragging and heat. Clearance that is too loose causes apply delay and slip. Both end the same way — a burned 3-4 pack and a comeback.

Vehicle Compatibility

The 4L60E and its predecessor the TH700-R4 (also called the 700-R4 / 4L60) ran behind a huge range of rear-wheel-drive GM vehicles. That is why this pack lands on so many benches:

• Chevrolet / GMC — Silverado, Sierra, Tahoe, Yukon, Suburban, Express/Savana vans, S-10, Blazer, Camaro
• Cadillac — Escalade
• Pontiac — Firebird / Trans Am
• Other GM-family applications — Holden, Isuzu, and select Hummer H3 builds

The later 4L65E / 4L70E share the same 3-4 clutch architecture. Always confirm the exact unit and year against the casting before ordering — running changes across model years affect the pack and the selectable parts.

FAQ

What is a clutch pack?

A clutch pack is the stack of friction plates and steel plates inside a drum that locks together under hydraulic pressure to transfer engine power through a given gear. When the frictions wear thin, the pack slips instead of holding.

How does a clutch pack work?

Hydraulic pressure drives a piston against the pack, clamping the friction and steel plates so they turn as one. Drop the pressure and the plates release. Clutch pack clearance is the small gap that lets the pack release cleanly — too much gap and apply goes soft and delayed.

What is the correct 3-4 clutch pack clearance on a 4L60E?

The factory window is shown in the table above (OEM 0.060"–0.085"), with replacement called for past the listed service limit. Always measure against the spec for your specific unit and year rather than a remembered number.

Can I fix excessive clutch clearance by adding a steel plate?

No. Adding a steel to close up a loose pack changes piston travel and apply feel and hides worn frictions. Replace the worn pack and set clearance with the correct selectable backing plate or snap ring.

What are the symptoms of a worn 3-4 clutch pack?

Slipping or flare on the 3-4 shift, delayed engagement, and burnt-smelling fluid are the classic signs. By the time you smell burnt fluid, the frictions are already losing material — measure the clearance to confirm.

Does the TH700-R4 use the same clearance as the 4L60E?

No. The TH700-R4 3-4 pack has its own window (see the table). Verify the unit first; the two are closely related but not identical.
