Transmission Pressure Testing Guide: Diagnosing Hydraulic Failures

Transmission slipping, hard shifts, or delayed engagement into Drive all point to the same root cause: loss of hydraulic pressure. These are not symptoms to wait on. Low line pressure accelerates clutch wear fast — and what starts as a seal or pump issue becomes a full overhaul if you let it run. Before you start replacing parts, run a proper pressure test. For a broader look at what drives automatic transmission shifting problems, that post covers the full range from electronic to mechanical.

The Heart of the System: Understanding Hydraulic Pressure

Hydraulic pressure is the foundation of every automatic transmission — generated by the oil pump and regulated by the valve body. To find the root of a failure, you need to separate electronic solenoid issues from mechanical internal faults. Without adequate pressure, clutch packs cannot apply with the necessary force, generating heat that burns through friction material fast.

Key Components in Pressure Regulation

Oil Pump: The primary source of flow. Worn gears, pump cavitation, or pressure regulator wear will produce insufficient base pressure across all ranges.

Valve Body: The hydraulic brain of the transmission. It directs fluid to the correct circuits through a network of passages and solenoids. Worn bores or cross leaks cause pressure to bleed into the wrong circuits. The symptoms — flare shifts, hard shifts, or delayed engagement — depend on which circuit is losing pressure.

Electronic Pressure Control (EPC) Solenoids: These translate TCM signals into physical pressure changes. A failing EPC solenoid — even one without an active code — can cause erratic line pressure throughout the shift cycle. For a closer look at how pressure control codes present, see our breakdown of code P1860.

Seals and Rings: Hardened or cracked rubber and Teflon seals allow hydraulic leakage out of pressurized circuits before fluid reaches its destination. This is one of the most common causes of pressure loss in the field. It only shows up at operating temperature — when overheated fluid thins out enough to escape through worn clearances.

Diagnostic Procedure: Line Pressure Testing Step by Step

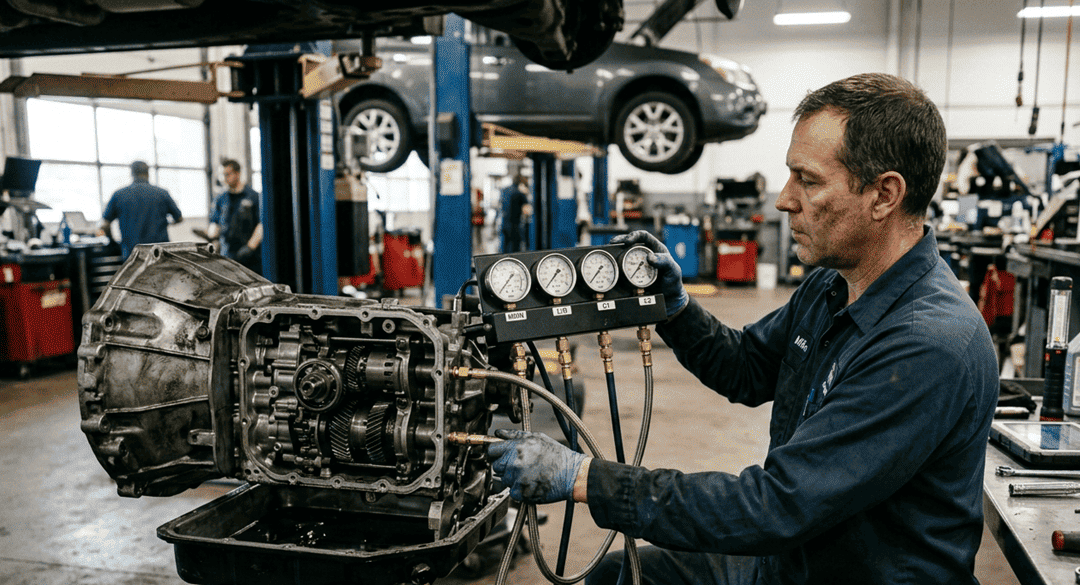

A line pressure test is the most reliable diagnostic step available — more informative than a scan tool reading alone. You will need a high-pressure gauge rated to at least 300 PSI and the manufacturer's pressure specifications for the specific transmission. Connect the gauge to the case test port and observe how the system responds under different engine loads and RPMs.

Recommended Shop Tests

Line Pressure Test at Idle: Verifies whether the pump generates the minimum pressure required to keep clutches engaged without load. Low readings here point to pump wear, a clogged filter, or a stuck pressure regulator valve.

Stall Test: Measures pressure under full throttle load. Internal seal leaks show themselves here — the kind that pass a cold idle test but fail under stress. If pressure drops significantly during the stall, look at internal seals and clutch pack condition first.

EPC Solenoid Monitoring: Run the gauge alongside a scan tool and watch whether pressure varies proportionally to the amperage commanded by the TCM. A mismatch points to a solenoid or wiring issue rather than a mechanical fault. If you are seeing a P0846 fluid pressure sensor code alongside irregular readings, the sensor itself may be skewing your data.

Temperature First: Always take final pressure readings at operating temperature — typically 160–180°F. Cold fluid is thicker and produces artificially high readings that mask leaks. Record a cold reading and a hot reading on the same test. A significant pressure drop between the two almost always points to hardened seals or worn pump clearances. The fluid temperature sensor is worth inspecting if your readings are inconsistent — a faulty sensor can cause the TCM to mismanage pressure based on bad temperature data.

Factors Affecting Hydraulic Integrity

Low pressure does not always mean internal wear. A cooler restriction can cause back-pressure that affects overall flow without any mechanical failure inside the unit — check the external cooler before you drop the pan. Fluid condition matters just as much: overheated fluid loses viscosity stability, and the failure becomes most obvious at operating temperature.

Start with the basics before condemning major components. A clogged filter is the cheapest fix in this diagnostic chain. A P0868 code — fluid pressure low — will often accompany these symptoms and can help confirm where the pressure drop is occurring.

Advanced Diagnostics: Solenoids and PWM

Modern transmissions use Pulse Width Modulation (PWM) to manage pressure in real time. An intermittent solenoid fault may not trigger a DTC, but it will cause pressure variances that only a live hydraulic test will catch. This is why a scan tool alone is not a complete diagnostic — the gauge tells you what the scanner cannot.

Frequently Asked Questions

Why does my transmission have good pressure when cold but fails at operating temperature?

As fluid heats up, its viscosity drops — it thins out. If internal seals are hardened or pump clearances are worn, overheated fluid escapes through those gaps more easily. The pressure drop won't show up when the oil is cold and thick. This is a reliable sign of internal seal wear or pump clearance issues that will not get better on their own.

How do I tell the difference between a failed EPC solenoid and a mechanical pump failure?

On most systems, disconnecting the electrical harness causes the EPC solenoid to default to maximum line pressure. If the gauge jumps to its highest spec with the harness disconnected, the pump is healthy and the fault is electronic. If pressure stays low with the harness off, the problem is mechanical — pump wear or an internal leak.

Do I need to pull the transmission to replace an EPC solenoid or valve body?

On most modern vehicles, no. The valve body and solenoids are accessible through the oil pan — a targeted repair without the full labor of a transmission removal. If the pressure test points to leaking internal pistons or seals, a full overhaul will be necessary.

Can I use a standard engine oil pressure gauge for transmission testing?

No. Most engine oil pressure gauges are rated for 80–100 PSI. Automatic transmissions can reach 300 PSI or more during a stall test or in Reverse. An underrated gauge gives inaccurate readings — and at those pressures, a ruptured gauge is a safety hazard.

Diagnose First, Then Source the Right Parts

Once your pressure tests point to the cause, the parts you use determine whether the fix holds. A pump upgrade kit, a valve body, or a full seal and ring set all need to match the specific transmission and build date. Not just the model year.
