Wet Air Testing A Transmission: How To Catch Leaks On The Bench

Quick Answer

• What It Is: Wet air testing is the standard clutch circuit air test with ATF added to the circuit first.
• Why The Fluid Matters: Fluid seals normal clearances. Dry air leaks past them and gives you a false failure.
• When To Do It: On the bench, one clutch circuit at a time, before the unit is closed up.
• What It Catches: Cut or rolled piston lips, leaking sealing rings, cross leaks between circuits, and check balls that do not seat.

You finish the rebuild, install the unit, and the road test shows a flare shift. Now the transmission comes back out for a seal that costs a few dollars. You eat the labor.

That is a comeback you built on the bench. Wet air testing a transmission during assembly is how you find that seal while the drum is still in your hands.

Reactive Vs. Proactive Air Testing

Most shops air test. The difference is when.

Reactive testing happens after the unit is assembled or installed. It tells you something leaks. It rarely tells you where.

Proactive testing happens during assembly. You test each drum and each clutch circuit as you build it, so a failure points at one part.

How Wet Air Testing Works

Fill the circuit with a small amount of ATF, then push that fluid with regulated air.

A clutch circuit needs clearance to work. Dry air finds that clearance and leaks through it, so a healthy circuit can sound like a bad one. Fluid seals normal clearance. What still leaks with fluid in the circuit is a real leak.

Watch for two things. First, the piston strokes and applies the clutch pack. Second, fluid stays where it belongs. ATF bubbling at the piston, the sealing rings, or a neighboring port is pressure loss. You would have found it on the road test.

Know The Limits

Wet air testing is a go or no-go check. It has no number attached, so reading it takes experience. Test known good parts and known bad parts until you can tell the difference.

For valve body bores, vacuum testing is the better tool because it gives you a measurement. See Transmission Valve Bodies: Rebuild Or Replace.

What You Need

• A regulated air supply with a gauge
• A controllable blowgun with a tapered rubber tip
• Clean ATF of the type the unit uses
• The service manual for the unit, to identify each feed port
• Safety glasses with side shields, or a face shield

Step-By-Step Bench Procedure

Safety first: air and ATF together will spray. Wear eye protection every time.

Step 1: Regulate The Air

Set the regulator before you test anything. Never use raw shop air at 90 to 120 PSI. It can damage new seals and throw parts.

Published guidance varies by circuit. Sonnax lists under 30 PSI in one procedure and 30 to 60 PSI in others. Start around 30 PSI and follow the service manual for the unit on your bench.

Step 2: Add The Fluid

Put a small amount of clean ATF into the feed port you are testing. Coat the piston lip and the sealing rings.

Step 3: Apply Air

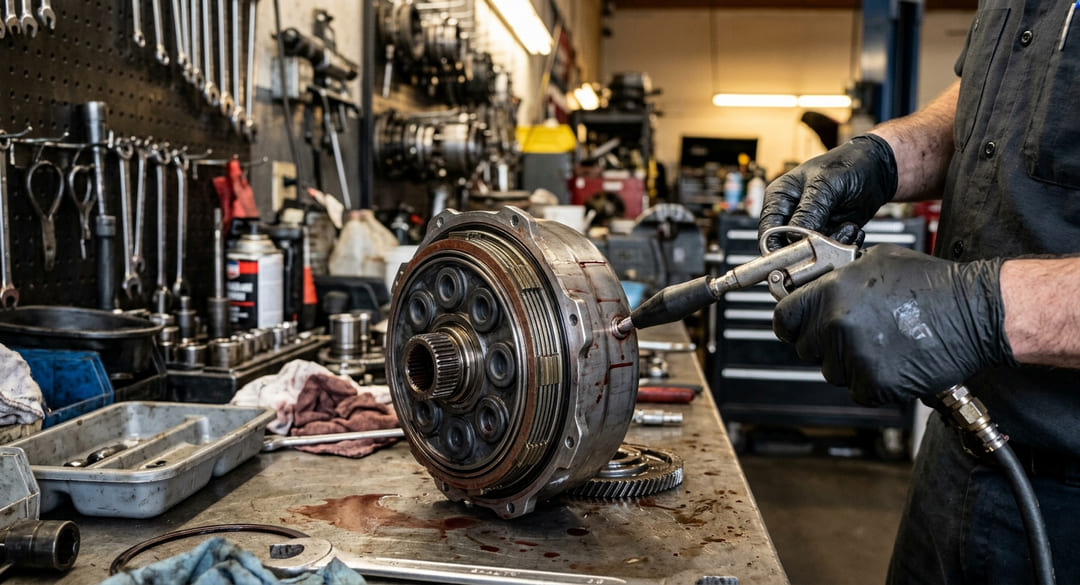

Seat the rubber tip firmly in the port. Apply air for a few seconds and hold the tip steady.

Step 4: Read The Result

• Pass: A firm thump as the piston applies the pack. No steady hiss. The piston returns cleanly when you release the air.
• Fail: A steady hiss, slow or weak piston travel, or ATF bubbling at the piston, the rings, or a neighboring port.

Step 5: Find The Cause Before You Replace The Part

A leaking new piston usually means installation damage. Check for a rolled or cut lip, a burr in the drum, or a ring that did not seat. Replace the part, then retest the same circuit.

Where To Test: Four Common Units

GM 4L60E / 4L65E: 3-4 Clutch

• The Complaint: Slipping or no 3rd and 4th, and burned 3-4 clutch packs soon after a rebuild.
• The Test: Apply air to the 3-4 clutch feed at the input housing. Hissing or bubbling at the piston or the sealing rings means apply loss, and apply loss is what burns the clutch pack.
• The Parts: OE Molded 3-4 Piston, Hi-Per Blue Molded 3-4 Piston, or the 4L60E Piston Kit.

Ford 6F35 / 6F50: 3-5-Reverse Clutch

• The Complaint: Harsh reverse engagement, flare shifts, or ratio codes on 3rd and 5th.
• The Test: Add ATF to the drum and apply air to the feed port. Bonded pistons harden with heat. Fluid foaming around the inside edge of the piston means the lip no longer seals.
• The Parts: Overhaul Kit Transtec With Pistons 6F35.

Chrysler 45RFE / 545RFE / 68RFE: Underdrive And Overdrive

• The Complaint: Limp mode with ratio codes such as P0731 or P0734.
• The Test: Apply air to one input clutch feed and watch the others. Air or fluid coming out of the overdrive port while you test underdrive is a cross leak at the sealing rings or piston seals.
• The Parts: Piston Kit 68RFE or the Molded Underdrive Piston.

Ford 10R80 / GM 10L80: CDF Clutch Cylinder

• The Complaint: Harsh or delayed engagement and harsh or delayed shifts, often with ratio or solenoid performance codes.
• The Cause: Ford traces this to the sleeve in the CDF clutch cylinder. The sleeve moves and opens a leak in the hydraulic circuits. Ford's bulletins cover units built on or before August 15, 2022.
• The Test: Air check the complete drum assembly through the pump before it goes in the case. A leak here means the unit comes back apart after installation.
• The Parts: Ford Redesigned CDF Drum for the 5.0L Mustang, Transit, and 3.0L Explorer, Sonnax CDF Drum Saver Kit, and the Sealing Ring Kit Transtec 10R80.

Vehicle Compatibility

Match parts to the unit, not only to the vehicle. Not sure which unit you have? Send us the tag.

Frequently Asked Questions

Why Not Air Test With Dry Air Only?

Every clutch circuit has working clearance. Dry air leaks through it, so a good circuit can test bad. Fluid seals that clearance, and only real leaks show.

What Air Pressure Should I Use For A Wet Air Test?

Use regulated air. Published figures run from under 30 PSI to 60 PSI depending on the circuit. Start around 30 PSI and follow the service manual. Never use unregulated shop air.

What If A Brand New Molded Piston Leaks?

Take the drum apart. Look for a lip that rolled or cut during installation, a burr in the drum, or a ring that did not seat. Replace the part and retest.

What Does Fluid At A Neighboring Port Mean?

A cross leak. Pressure meant for one clutch is reaching another circuit, usually past a sealing ring. Fix it before the unit is closed.

Does Wet Air Testing Work On Every Automatic Transmission?

The method works on any hydraulic clutch circuit. What changes is where the feed ports are. Use the service manual for the unit to identify each one.

Can I Wet Air Test A Valve Body?

Yes, and it will show check balls that do not seat and badly worn bores. For bore wear, vacuum testing is more accurate because it gives you a number.

Get The Right Parts Before You Close The Case

The test tells you what the road test cannot. The part fixes it.

We stock automatic transmission parts such as molded pistons, piston kits, sealing rings, and overhaul kits for the units in this guide. Browse Piston Kits For Automatic Transmissions, Hi-Per Blue Bonded Pistons, or Transmission Rebuild Kits.

We have supplied transmission shops for 30 years, and we ship across the United States, Latin America, and the Caribbean.

Not sure which piston fits your unit? Call us at +1 786 360 1516 or reach us on WhatsApp. Tell us the unit and which circuit failed. We will tell you which parts you need — and which ones you do not.

Sources

Sonnax: Time-tested Techniques For Today's Technology

Sonnax: Valve Body Inspection And Rebuilding

Sonnax: Troubleshoot Pressure Loss In 10-Speed Clutch Packs

Transmission Digest: Make Sure You're Vacuum Testing

Ford Technical Service Bulletins for the 10R80 CDF clutch cylinder (24-2176, 25-2301, 25-2611)
