Transmission Valve Body Repair: Vacuum Test & Ream Guide

You pulled the pan and found the fluid dark, the magnet loaded. Now you are looking at a valve body, deciding whether it goes back on the bench or into the core pile.

Guessing that call is how comebacks happen.

Transmission valve body repair starts with a number, not an opinion. Vacuum testing gives you that number — a repeatable measurement of how well each valve spool still seals in its bore. It replaces wiggle testing, flashlight inspection, and hoping.

This guide covers four things:

• How the test works, and how to run it
• How to set a pass/fail standard that means something in your shop
• The bores that wear first in the four families we support most
• How to decide between reaming a bore and replacing the casting

Pricing the job rather than performing it? Our companion article on transmission valve body replacement cost — rebuild or replace? covers the money side.

Why Valve Bodies Wear Out

The valve body is the hydraulic control center of an automatic transmission. Hardened steel spools stroke inside aluminum bores thousands of times per drive cycle. The design clearance between them is tiny by necessity — that clearance is the hydraulic seal.

Two things open it up.

Side-loading presses the spool against one wall of the bore as pressure rises. That wears a polished crescent into the aluminum.

Constant oscillation from pressure control solenoids keeps the most active valves working in a narrow band of the bore. The result is a step cut exactly where the seal needs to happen.

Once clearance exceeds what the spool can seal, ATF cross-leaks instead of doing work. You get apply loss at the clutch, line pressure that will not hold, delayed engagement, and flare shifts. Left alone, it burns clutch packs from slipping under apply. Add clutch material contamination and converter debris to the fluid and the bores scour faster still.

On late-model units the computer adapts around the leak until it runs out of adaptive range. That is why a unit can drive acceptably for months, then come apart quickly — and why the customer swears it failed overnight.

How Vacuum Testing Works

Vacuum testing measures spool-to-bore clearance without a pressurized fluid test stand. Sonnax pioneered the technique for valve bodies, adapting it from cylinder-head valve-guide work.

Controlled vacuum — measured in inches of mercury, in-Hg — is pulled on a sealed circuit port. Air is drawn between the spool and the bore. Tight clearance restricts airflow and the gauge climbs. A worn oval bore lets air through and the reading falls.

Vacuum loss is directly proportional to wear. That is what makes this quantitative instead of a judgment call.

For scale: a perfect vacuum reads 29.9 in-Hg at sea level. A very good circuit approaches 22 to 23 in-Hg. A severely worn bore can read as low as 8.

The Bench Procedure

1. Prep The Casting

Strip the valve body — solenoids, sensors, separator plates. Clean it with a residue-free solvent to cut varnish, degraded ATF, and metallic debris.

The casting must be clean and dry. Residual fluid gets pulled into the gauge and pump. That lowers your readings a little more with every test and quietly corrupts everything after it. Clean and recalibrate periodically, or your numbers drift without you noticing.

While it is apart, inspect the bores against the light. A polished crescent, a flower-petal pattern, a visible step, or spiral machining marks all mean the seal is already compromised.

2. Calibrate — Every Single Time

This is the step that gets skipped. Skipping it makes every number you record meaningless.

On a Sonnax VACTEST-01K stand:

1. Route the test line to the calibration fitting
2. Adjust the PUMP valve to 5 in-Hg
3. Seal the calibration orifice with a finger
4. Adjust the BLEED valve to 25 in-Hg
5. Repeat until both hold consistently

Shops at elevation may never reach 25 in-Hg. That is normal. Substitute a lower maximum as your standard and shift your thresholds down to match.

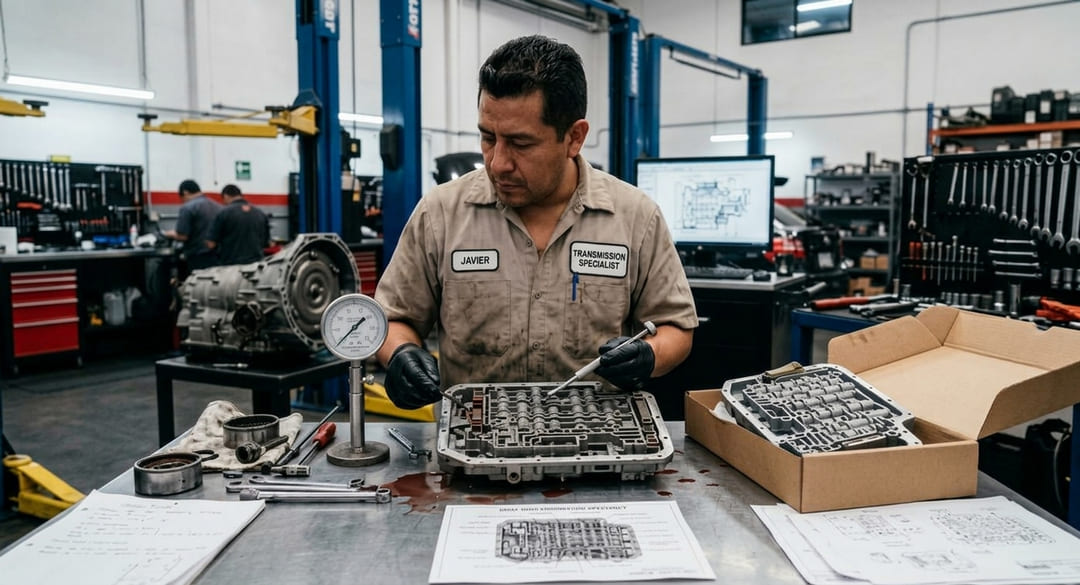

3. Run The Test

Set the clean casting on a foam mat, locate the circuit, and seal the port with a test plate and sealing pad. A smear of assembly gel around the worm tracks improves the seal on a nicked surface.

Do not seal the neighboring port that supplies the test air. Block it and you get a falsely high reading — and you will pass a worn bore straight back into a customer's vehicle.

Valves are tested at rest unless the guide says otherwise. Some circuits must be tested with the valve held in its operating or inverted position, or propped open. Apply vacuum, let it settle, record it.

Setting A Pass/Fail Standard That Holds Up

Here is the part most articles get wrong: there is no universal minimum vacuum reading per transmission. Anyone publishing one is making it up. Sonnax states this directly in every test kit booklet — pass/fail standards are specific to your setup and your process.

Your reading depends on pump capacity, gauge, and calibration orifices. It also depends on how many spools sit in the captive circuit, the spool diameter, its contact length in the bore, and your altitude. Two shops testing the same casting can record different numbers and both be right.

What Sonnax does publish is guidance on typical results:

The real break point is 15 in-Hg, not the 13 or 14 you will see quoted elsewhere.

Sonnax does specify a number for a repaired bore, after reaming and fitting an oversized valve kit. That figure is consistently 18 in-Hg minimum. It is post-repair verification, not a diagnostic threshold.

To build your own baseline properly, record readings at every bore across roughly ten cores of the same unit. Average them, and set your shop minimum from that data. After that, every casting gets measured against your own bench instead of somebody's blog post.

Critical Wear Areas By Transmission Family

GM 4L60E / 4L65E / 4L70E

The actuator feed limit (AFL) valve is the signature wear point. It regulates line pressure down to roughly 80–115 PSI to feed the EPC and shift solenoids. Its large reaction area makes it a side-loading magnet, and the EPC solenoid keeps it in constant motion.

As the bore opens, solenoid feed drops and line pressure follows. Complaints: wrong gear starts, solenoid performance codes, erratic line pressure, no 4th, hard shifts, 2nd gear starts, and clutch and band failure.

The AFL circuit needs 48–52 PSI to fully stroke the shift valves. Below that you get a wrong-gear start or a missing gear.

Before you start replacing parts: if you are chasing shift solenoid B codes like P0755, check the AFL bore before you condemn the solenoid. The bore tells you what the scan tool cannot.

Test the AFL balance spool with the valve propped open .125in on the balance end. A repaired bore should hold 18 in-Hg.

The TCC regulator valve ties to code 1870, low TCC apply pressure, and a cooked converter.

The pressure regulator and boost valve live in the pump cover, not the valve body — worth knowing before you go looking for them. And a Sonnax replacement PR valve cannot be vacuum tested there. Its PTFE seal needs fluid to expand and will not seal against air.

We stock separator plates for the 4L60E and 4L65E, oversized valve kits, and the reaming tooling to fit them.

Ford 5R55W / 5R55S

Introduced in 2002 for the Explorer and Mountaineer. From 2003 it appears in the Lincoln LS, Lincoln Aviator, and Ford Thunderbird.

A warning that costs people money: the 5R55E looks similar internally, but very few components actually interchange. ATSG's own manual flags it. That one wrong part can turn a valve body job into a teardown — do not carry 5R55W/S notes across to a 5R55E. That unit takes its own shift kit and parts.

The VFS1 and VFS2 modulator control valves are the bores to test. Complaints: flare shifts, low line pressure, and pressure control out-of-range codes.

Note the distinction. Ford's PCA, PCB, and PCC are the three pressure control solenoids in the solenoid body. They are not vacuum-testable bores, and Ford does not service them separately.

The solenoid feed limit and converter feed limit valves cause no lockup, delayed engagement, overheating, front lube failure, and gear ratio codes in the 731–741 range.

The TCC control and TCC modulator valves are where P0741 genuinely lives on this unit. Expect excess TCC slip, TCC lining failure, cooler restriction, and an overheated converter alongside it. Our breakdown of what causes a TCC circuit code and how to fix it covers the diagnostic side.

Ford 6R60 / 6R75 / 6R80 / 6R100 And ZF 6HP19 / 6HP26 / 6HP32

The 6R80 is built under license from the ZF 6HP26 architecture. The two are not interchangeable, and the generation split matters:

• 6R60 / 6R75 / 6R80 (2009–2014) share wear areas with ZF 6HP19 / 6HP26 / 6HP32 Gen 1
• 6R80 (2015-later) groups with the 6R100 — different casting, different guide
• Gen 1 units with an 053 separator plate differ again
• From 2012 the Mechatronic module was dropped on most models in favor of PCM control

Bores to test:

• Bypass clutch control regulator valve — TCC codes, excess TCC slip, cycling RPM, low TCC release pressure, rough idle in Reverse
• Converter release regulator valve — TCC slip RPM, harsh TCC apply and release
• Solenoid pressure regulator valve — flare and hard shifts, wrong gear starts. Test it twice: at rest, then in its regulating position
• Main pressure regulator valve — erratic line pressure, delayed or no Reverse

Aisin AW TF-60SN — VW/Audi 09G, 09K, 09M And Mini 6F21WA

The solenoid modulator valve is this family's solenoid feed regulator. There are two of them — one in the lower valve body, one in upper valve body #2. Complaints: codes 734, 735, and 729, kickdown slip and shock, and 4th, 5th, and 6th gear slip. Repaired bores hold 18 in-Hg.

Do not confuse it with the secondary regulator valve. Different bore, different complaints — TCC codes, slip, surge, overheated fluid, and bushing failure.

Harsh engagement traces to the pressure cutback valve.

The specific complaint "shift quality gets worse as it heats up" points somewhere else again. Along with soft, flaring, or long shifts and intermittent clutch and solenoid codes, that one points at the spring adjuster plugs — not the solenoids.

This casting is also notorious for manual valve bore wear, especially in the O.D. position. Quick check: pull the valve, clean and dry the bore, then reinsert it so about half the large middle land shows. That is roughly 2.25in of valve protruding. There should be almost no play up-down or side-to-side.

Vehicle Compatibility

Fitment varies by build date and casting. Send us your unit and casting details and we will confirm before you order.

When To Ream And When To Replace

The break point is simple.

Isolated wear on one or two bores is exactly what oversized valve kits and reaming tooling were built for. The repair is permanent, and the tooling is a one-time purchase that pays back across many jobs.

Wear across more than about three critical circuits changes the math. Accumulated bench hours plus supplies start to exceed a remanufactured unit that arrives corrected, tested, and under warranty.

And a casting with severe metal contamination, heat warping, or a cracked bore is not a reaming candidate at all.

Whichever way it goes, re-test after the repair. A reamed and sleeved bore that will not hold 18 in-Hg has not been fixed — it has been disturbed.

What We Stock

Diagnose first. Then source the right parts.

• Oversized valve kits, sleeves, reaming tooling, and valve body fixtures
• Zip Kits and shift correction kits for the units above
• Remanufactured and bench-tested valve bodies
• Valve body gaskets and separator plates
• Solenoid sets, vacuum test stands, and application-specific test plate kits

Name-brand parts — Sonnax, Transgo, Transtec, Raybestos, Allomatic. Priced for the shop, shipped from our Miami warehouse across the United States, Latin America, and the Caribbean. Thirty years in the trade, and ATRA LATAM affiliated.

Not sure whether your numbers justify a reamer or a reman? Call us at +1 786 360 1516 or reach us on WhatsApp. Tell us the unit and which circuits came up short. We will tell you which parts you need — and which ones you do not.

Frequently Asked Questions

What Causes A Transmission Valve Body To Fail?

Bore wear, almost always. Hardened steel spools stroking in aluminum bores gradually open the clearance that forms the hydraulic seal. Side-loading and constant solenoid oscillation drive it.

Contaminated fluid accelerates the process. Clutch material and converter debris scour the bores and can jam a valve outright. Overheated fluid that has lost its film strength does the same thing more slowly.

Will A Bad Valve Body Throw A Code?

Often, but not always — and the code usually blames something else.

Bore wear at a solenoid feed valve starves the solenoids of pressure. The computer then logs a solenoid performance or gear ratio code while the solenoid itself is fine. That is the trap. Replacing a good solenoid changes nothing, because the leak upstream is still there.

A valve body can also be badly worn and throw no code at all. The symptom is a shift-quality complaint the driver notices long before the computer does.

Can A Transmission Valve Body Be Repaired Instead Of Replaced?

Yes, and for isolated wear it is the better repair. Reaming the worn bore oversize and fitting a hardened oversized valve and sleeve restores the seal permanently. Often it comes back better than new, because the replacement parts are designed to resist the side-loading that wore the original.

The economics turn once several circuits are worn. At that point a remanufactured unit with a warranty usually costs less than the bench time.

What Equipment Do I Need To Vacuum Test A Valve Body?

Four things:

• A vacuum test stand with a calibrated gauge
• A vacuum pump — Sonnax recommends 3 CFM
• A test plate and sealing pad
• The vacuum test guide for the unit on your bench

Application-specific test plates speed things up considerably. They seal the whole casting at once, so you just move the test tip between marked ports. You also need a genuinely clean, dry casting. Without that, the equipment does not matter.

What Is A Transmission Valve Body?

It is the hydraulic control center of an automatic transmission. Think of a machined casting full of spring-loaded valves, fluid passages, and check balls, with the solenoids mounted to it.

It routes pressurized ATF to the right clutch or band at the right moment. Every shift the transmission makes is executed here. When its bores wear, the transmission loses the ability to apply its clutches cleanly — which is why valve body wear shows up as a shifting complaint rather than a noise.
