How to Adjust Automatic Transmission Bands

Do you feel like your automatic transmission isn't responding as it used to? Are the shifts abrupt or slow to engage? These are common signs of a potential problem with the transmission bands. The bands are essential for the proper functioning of an automatic transmission, and their correct adjustment is key to maintaining optimal performance and prolonging the transmission's lifespan.

What Are Automatic Transmission Bands?

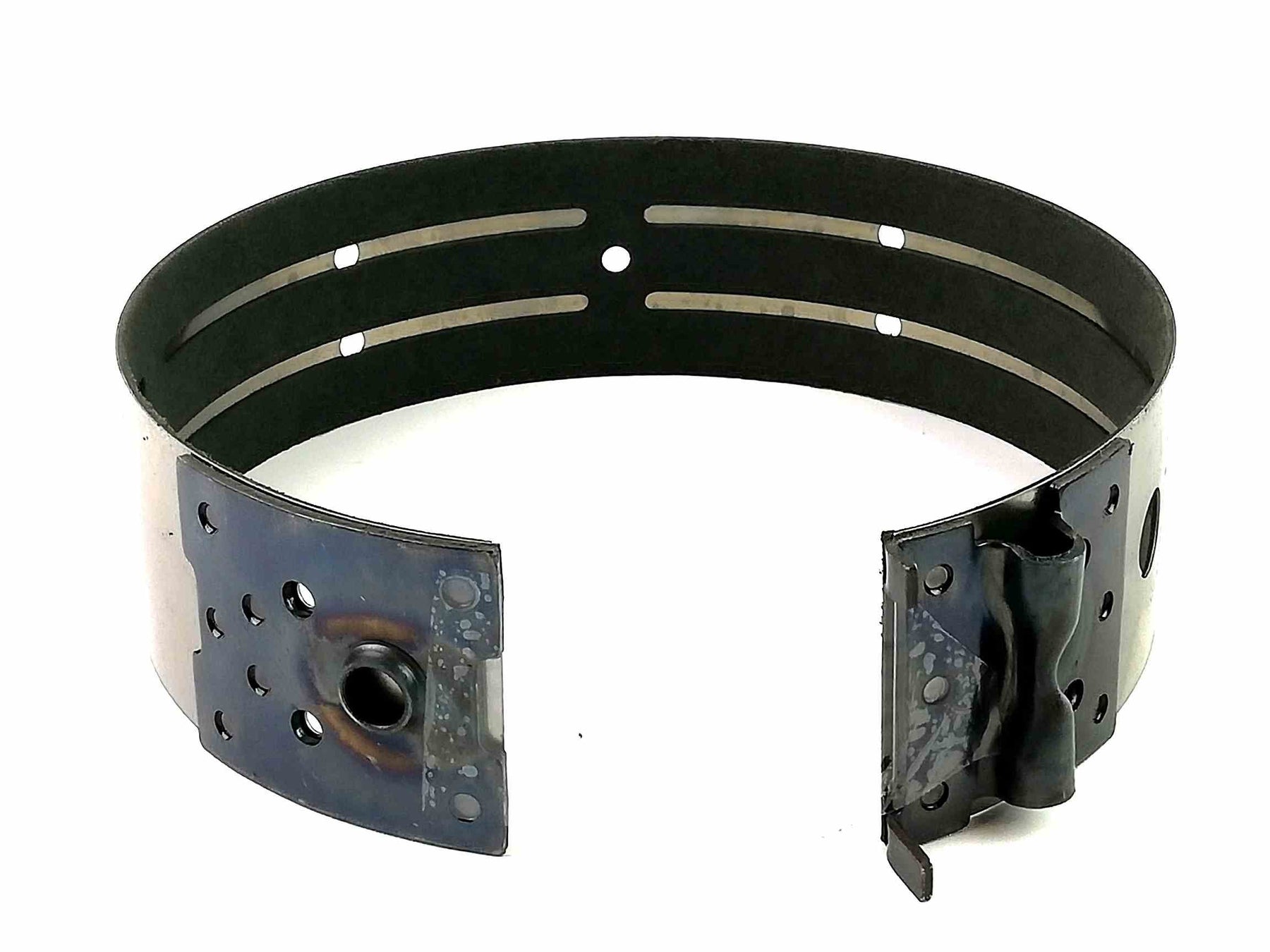

Automatic transmission bands are crucial components that help change the gears in your vehicle. They work by tightening around a drum in the transmission, which allows the vehicle to shift gears.

You can think of the bands like the brakes on a bicycle, which tighten to stop the wheel in place. In the case of transmission bands, their job is to stop the transmission drums to allow the gears to engage and shift smoothly.

Signs of Poorly Adjusted Bands

When the transmission bands are not properly adjusted, the effects can be quite detrimental to the vehicle’s performance. Some of the most common signs include:

• Transmission Slipping: If the bands are not tight enough, the transmission may slip and fail to shift properly.
• Abrupt or Erratic Shifts: Improper adjustment can cause the gears to shift suddenly, creating an uncomfortable and unreliable driving experience.

• Delay in Gear Engagement: If the bands are too loose, there may be a delay in the gear change, which can generate friction and inefficient operation.

• Overheating and Premature Wear of Internal Components: Incorrect adjustment can cause the transmission to overheat, leading to faster wear of internal components.
• Loss of Power and Fuel Efficiency: A misadjusted transmission can affect the vehicle's power, causing it to operate less efficiently in terms of fuel consumption.


The Importance of Periodic Band Adjustment

Adjusting the bands is not always a daily task, but it is essential to do so periodically as indicated in the vehicle's manual. Additionally, if you experience any of the symptoms mentioned above, it’s time to inspect and adjust the transmission bands. Keeping the bands in good condition helps prevent more significant damage and ensures that your vehicle continues to operate efficiently.

How to Adjust Transmission Bands: Tools and Materials Needed

Before starting the band adjustment, make sure you have the following tools and materials:

• A set of common-sized wrenches and Allen keys: 10 mm, 12 mm, etc.

• A torque wrench with the specified torque range from the vehicle manual.

• A hydraulic jack and safety supports (jack stands) to stabilize the vehicle before working underneath it.

• A drain pan. While band adjustment doesn’t always involve fluid change, it’s advisable to have a pan in case any fluid spills.

• Clean rags to wipe off any fluid or grease residue.

• A service manual with the vehicle’s specifications.

• Optional: A work lamp to ensure good visibility during the process.


Step-by-Step Guide for Adjusting Transmission Bands

Here’s a detailed step-by-step procedure for adjusting the automatic transmission bands. Always proceed with caution!

• Lift the Vehicle: Use the hydraulic jack to lift the vehicle and secure it with safety supports. Never work under a vehicle that isn't securely stabilized.

• Access the Transmission: Locate the transmission housing. In many vehicles, the bands are found at the bottom of the transmission, so you may need to remove the protective cover or access panel.

• Identify the Bands: Identify the bands that need adjustment. Depending on the vehicle model and year, there may be several bands.

• Loosen the Adjustment Bolts: Using the correct wrench, loosen the adjustment bolts for the bands. This will allow you to modify the tension of the bands.

• Adjust the Band: Using the torque wrench, adjust the bands according to the vehicle manual's specifications. Be sure to apply the correct amount of torque to avoid damaging the components.

• Check the Tension: Once the bands are adjusted, check that they are properly tightened. The bands should not be too loose or too tight.

• Test the Operation: Before closing everything up and lowering the vehicle, conduct a test drive to ensure that the gear shifts are smooth and precise.

• Complete the Adjustment: Once you’ve verified that the transmission is functioning correctly, close up the transmission housing, remove the safety supports, and lower the vehicle.


When Is It Necessary to Adjust the Bands?

Adjusting the bands may be necessary in the following cases:

When you experience abrupt or erratic gear shifts.

If the transmission seems to slip or shows delays when changing gears.

When you hear unusual noises coming from the transmission.

If fuel efficiency significantly decreases.
